Metal Wiegand Reader (EM)
> Metal Case, anti-vandal
> Waterproof, conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Card type: EM card
> Reading range: 3~8cm
> External LED Control & External Buzzer Control

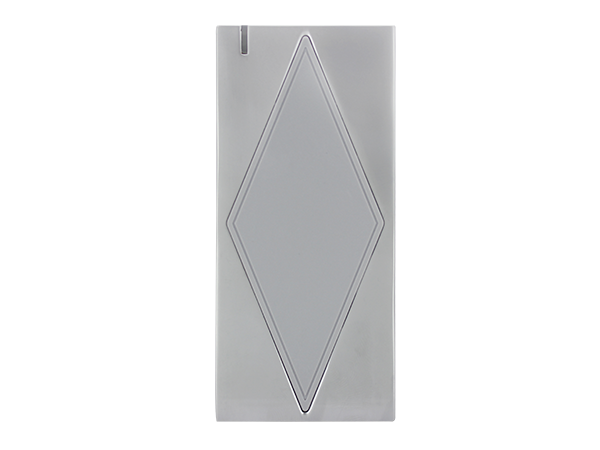

The PIX-PCS5-R (EM) reader is a metal case anti-vandal proximity reader.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
| Operating Voltage | 9~24V DC |
| Frequency | 125KHz |
| Card Type | EM Card |
| Reading Distance | 3~8 CM |
| Output Format | Wiegand 26 bits |
| (26~37 bits available upon request) | |
| Operating Temperature | -40 oC ~ 60 oC (-40 oF ~ 140 oF) |
| Standby Current | < 25mA |
| Operating Humidity | 10%~98% RH |
| Index of Protection | IP66 |
| Dimensions | L103 x W48 x H19 (mm) |
