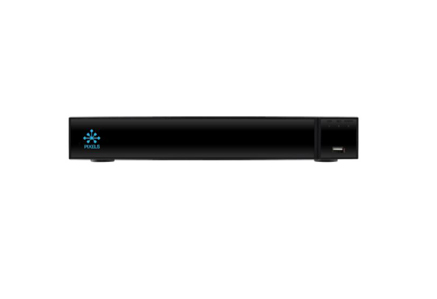

| Model |
PIX-PCNVRK1636 |
| System |
| Main Processor |
ARM Cortex A7 processor |
| Operating System |
Embedded LINUX |
| Video |
| Input |
25CH(4096×2160, 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc) |
| Output |
1VGA, 1HD |
| Audio |
| Input |
1 port RCA |
| Output |
1 Port RCA (Linear, 1kΩ) |
| Audio Bit Rate |
64kbps |
| Audio Compression Standard |
G.711u, G711a,ADPCM_DVI4 |
| Alarm |
| Sensor Input |
NO |
| Output |
NO |
| Motion Detection |
25 Channel, MD Zones: 396(22×18) |
| Trigger Events |
Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
| HD Output 1 |
Resolution:4K(3840*2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280x 720/60hz, 1024×768/60Hz |
| HD Output 2 |
/ |
| VGA |
Resolution:1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280×720/60Hz, 1024x 768/60Hz |
| Display Split |
25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k |
|
| Digital Zoom |
YES |
| OSD |
Camera title, Time, Motion detection, Recording |
| Recording |
| Video Compression |
H265/H264/H265+/H264+ |
| Resolution |
4k(4096×2160),5MP(2592×1944), 4MP(2688×1520/2560×1440), 3MP(2048×1536), 1080P(1920×1080),960P(1280×960), 720P(1280×720),D1(720×576/720×480) |
| Record Rate |
PAL: 4k@12×25fps,5MP@20x25fps,4MP@25×25fps,3MP@25x25fp,1080P@25×25fps,960P@25×25fps,720P@25×25fps,D1@25×25fp |
| Record Mode |
Manual\Timer\Motion Detection |
| Playback & Backup |
| LocalSync Playback |
1CH 4K@30fps,1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps |
| Decode Capability |
1CH 4k(3840×2160)@30fps |
| Remote Sync Playback |
yes |
| Search Mode |
ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions |
Play, Pause, Stop, Fast play, Digital Zoom |
| Backup Mode |
USB Device/Network |
| Network |
| Interface |
16 x RJ45 (10M/100/1000M Adaptive Ethernet Interface)+ 1xRJ45 10M/100M/1000M adaptive Ethernet Interface |
| Incoming Bandwidth |
120MB |
| Outgoing Bandwidth |
|
| Network Functions |
TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p |
| Onvif Version |
Support Onvif 2.4 |
| Web Browser |
IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) |
| CMS Software |
Support Windows 10//Windows 8/Windows 7/MAC OS |
| Cloud Support(P2P) |
YES |
| Smart Phone |
iPhone, ipad, Android ,Android pad |
| POE |
16x independent 100Mbps POE Network interface (Output Power At mode 30W, AF mode 15W per interface), 12/36 line order, totak Power Output≥200W, Support Plug and play |
| WIFI |
/ |
| Storage |
| Interface Type |
4 SATA Hard Disk interface (3.5″ SATA) |
| Capacity |
Up to 24TB Capacity |
| eSATA |
/ |
| General |
| Language |
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek |
| USB Interface |
2 USB 2.0 Interfaces |
| RS485 |
/ |
| Power Supply |
AC 100-240V |
| Working Environment |
-10~55℃/10~90% |
| Dimension (W×D×H) |
440*356*72(mm) |
| Weight |
7.5kg (Without HDD) |
