Description

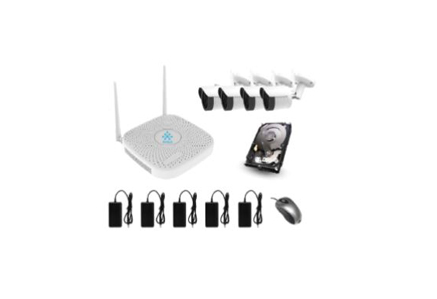

| MOdel No | PIX-WIFIPGE4364HF200 |
| Package | |
| NVR | 1x PIX-NVRPGE4364RKTW |
| CAMERA | 4x IPR25HF200W |
| WIFI range | No Obstacles 300m Max |
| Hard Disk | 1x1TB Seagate Hard Disk ST1000VX005 |
| Mouse | 1x USB 2.0 Mouse |
| Adaptor | 1xDC 12V 2A for WIFI NVR, 8xDC 12V 0.5A for WIFI IP Camera |
| Weight | 5.3kg/SET |
| Camera Model | PIX-PCIPR25HF200W |
| Camera | |
| Image sensor | 1/3″ SONY Low illumination CMOS Sensor |
| Resolution | 2MP 1080P |
| Effective Pixels | 1920(H)*1080(V) |
| Compression | H.264/H.264+/H.265/H.265+/ JPEG/AVI/MJPEG |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio | ≥52db |
| Scanning System | Progressive |
| Video Output | network |
| Reset Button | Optional |
| LENS Type | |
| Focus Length | 3.6mm |
| Focus Control | Fixed |
| lens type | fixed |
| Pixels | 5M pixels |
| Night Vision | |
| Infrared LED | 42µ x 2PCS optional |
| Infrared Distance | 30M |
| IR status | Auto Control |
| IR power On | Auto Control |
| Network | |
| Ethernet | RJ-45(10/100Base-T) |
| Protocol | TCP/IP,ICMP,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| POE | / |
| Video Delay | 0.35(within the lan) |
| Main Stream 1 | 1920* 1080@1-15fps(default resolution: 1920*1080/ frame rate: 15fps/bit rate: 2Mbps) |
| Main Stream 2 | 1280*720@20fps |
| Main Stream 3 | / |
| Sub Stream 1 | 720*480@ 1-15fps(default frame rate: 15fps/bit rate:0.5Mbps) |
| Sub Stream 2 | / |
| Sub Stream 3 | / |
| Tri Stream | 354*288@(1-15)fps(default frame rate:15fps) |
| IE Brower | IE8-11, Google Chrome (under version 45), Firefox (under version 53), Mac Safari |
| Smart Phone | iPhone,iPad,Android,Android Pad |
| Wireless | |
| Antena | 3dbi |
| Hotspot | no |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n) |
| WIFI Range | No obstacles 300m Max |
| Camera Features | |
| Day/Night | Color/B&W(IR-CUT) |
| Image Config | Saturation/brightness/ Contrast/Sharpness, Mirror, White Balance, FLK(flicker Control) |
| Corridor Pattern | / |
| ROI | / |
| Defog mode | Yes |
| BLC | yes |
| HDR | / |
| WDR | yes |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular zone |
| Recording Mode | NVR/NAS/VMS/Web |
| Language | Chinese,Simplified,Chinese Traditional, English,Bulgarian,Polish,Farsi,Germman,Russian,French,Korean,Portuguese,Japanese,Turkish,Spanish,Hebrew,Italian,Nederlands,Czech |
| Interface | |
| Audio | / |
| Alarm | / |
| SD Card Slot | / |
| RS485 | / |
| General | |
| Housing | Metal,IP66 |
| Anti-cut Bracket | YES |
| IR Cut Filter | yes |
| Operation Temperature | -10°C~ + 50°C RH95% Max |
| Storage Temperature | -20°C~ + 60°C RH95% Max |
| Power Source | DC12V±10%, 500mA |
| Dimension | 157(W)x 70(H)x 66(D)mm |
| Weight | 650g |
| Model | PIX-PCNVRPGE4364RKTW |
| System | |
| Main Processor | ARM Cortex A7 Quad-core Processor |
| Operating system | Embedded LINUX |
| Video | |
| Input | 4CH(2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc) |
| Output | 1 VGA, 1 HD |
| Audio | |
| Input | / |
| Output | 1 Port RCA(linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Audio Compression Standard | G711u,G711a, G726 |
| Alarm | |
| Sensor Input | NO |
| Output | NO |
| Motion Detection | 4 Channel, MD Zones: 396(22×18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
| Display | |
| HD1 | Resolution: 1920x 1080/60Hz, 1280x 1024/60Hz, 1024×720/60hz, 1024x 768/60Hz |
| HD2 | / |
| VGA | Resolution: 1920x 1080/60Hz, 1280x 1024/60Hz, 1024×720/60hz, 1024x 768/60Hz |
| Display split | 1/4ChxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP |
| Digital Zoom | Yes |
| OSD | Camera Title,Time,Recording,motion Detection, Alarm |
| Recording | |
| Video Compression | H.264/H.265/H.264+/H.265+ |
| Resolution | 5MP(2592×1944),4MP(2688×1520),3MP(2048×1536), 1080P(1920×1080), 960P(1280×960),720P(1280×720),D1(720×576/720×480) |
| Record rate | PAL: 5MP@9x25fp, 4MP@9X25fp,3MP@9X25fp, 1080P@9X25fp, 960P@ 9X25fp,720P@ 9x25fp, D1@9x25fp NTSC: 5MP@9x30fp, 4MP@9X30fp,3MP@9X30fp, 1080P@9X30fp, 960P@ 9X30fp,720P@ 9x30fp, D1@9x30fp |
| Record Mode | Manual\timer\motion detection |
| Playback & Backup | |
| Local Sync Playback | 1CH 5MP@30fps,1CH 4MP@30fps, 2CH 3MP@30fps,4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps |
| Decode Capability | 4CH 1080P@20fps |
| Remote sync playback | yes |
| Search Mode | All, Channel, manual, time, date, motion dectection |
| Playback functions | play, pause, stop,fast play, digital zoom |
| Backup Mode | Network/ USB(with usb hub) |
| Network | |
| Interface/td> | 1 RJ45 10M/100M Adaptive Ethernet interface |
| incoming Bandwidth | 28MB |
| Network Functions | TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP,P2P |
| Onvif Version | Support onvif 2.4 |
| Web Browser | IE8-11, google chrome(lower than ver44), firefox (lower than ver53) |
| CMS Software | Support Windows 7/ windows 8/ windows 10 |
| Cloud Support(P2P) | yes |
| smart phone | iphone,ipad,Android, Android Pad |
| POE | / |
| WIFI | Support, WIFI Range:No Obstacles 300 Max |
| Storage | |
| Interface Type | 1 SATA Hard Disk Interface (2.5″/3.5″ SATA) |
| Capacity | Up to 8TB Capacity |
| eSATA | / |
| General | |
| Language | traditional chinese, simplified chinese, english, polish, Czech, russian, Thai, Hebrew, Arabic, Bulgraian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek |
| USB Interface | 1 USB 2.0 Interfaces |
| RS485 | / |
| Power Supply | DC12V/2A |
| Working Environment | -10~55°C/ 10~90% |
| Dimension(WxDxH) | 220*219*50(mm) |
| Weight | 2.0KG( without HDD) |
